As residential and mixed-use developments across the UK come under growing pressure to manage surface water sustainably, Sustainable Drainage Systems (SUDS) have become a standard requirement of the planning process. At the heart of many SUDS schemes sits a pond, basin or forebay and the way its banks are retained has a direct bearing on how well that feature performs over the lifetime of the development.
Gabions have long been a preferred solution for this role. At Enviromesh, our civil engineering team regularly designs, manufactures and installs gabion structures for exactly this purpose: retaining the banks of attenuation and infiltration basins, and forming sediment forebays that protect the wider drainage system from silt build-up.
Why Gabions Suit SUDS Pond and Basin Applications
Unlike solid concrete or masonry retaining structures, gabions are permeable by design. Their high void ratio allows groundwater and surface water to pass through the structure rather than building up behind it, removing the hydrostatic pressures that can undermine more rigid retaining solutions. For a SUDS pond edge, where water levels fluctuate as the basin fills and empties, this permeability is a genuine engineering advantage rather than a cosmetic one.
That same open structure also does useful hydraulic work. Forcing water through the interlocking stone fill slows its velocity, encourages suspended sediment to drop out of suspension, and reduces the erosive energy reaching the basin banks. It’s this behaviour that makes gabions particularly effective when forming a sediment forebay — a pre-treatment feature designed to capture silt before it reaches the main attenuation or infiltration basin and reduce the maintenance burden on the wider system.
Three Common Applications on Residential Schemes

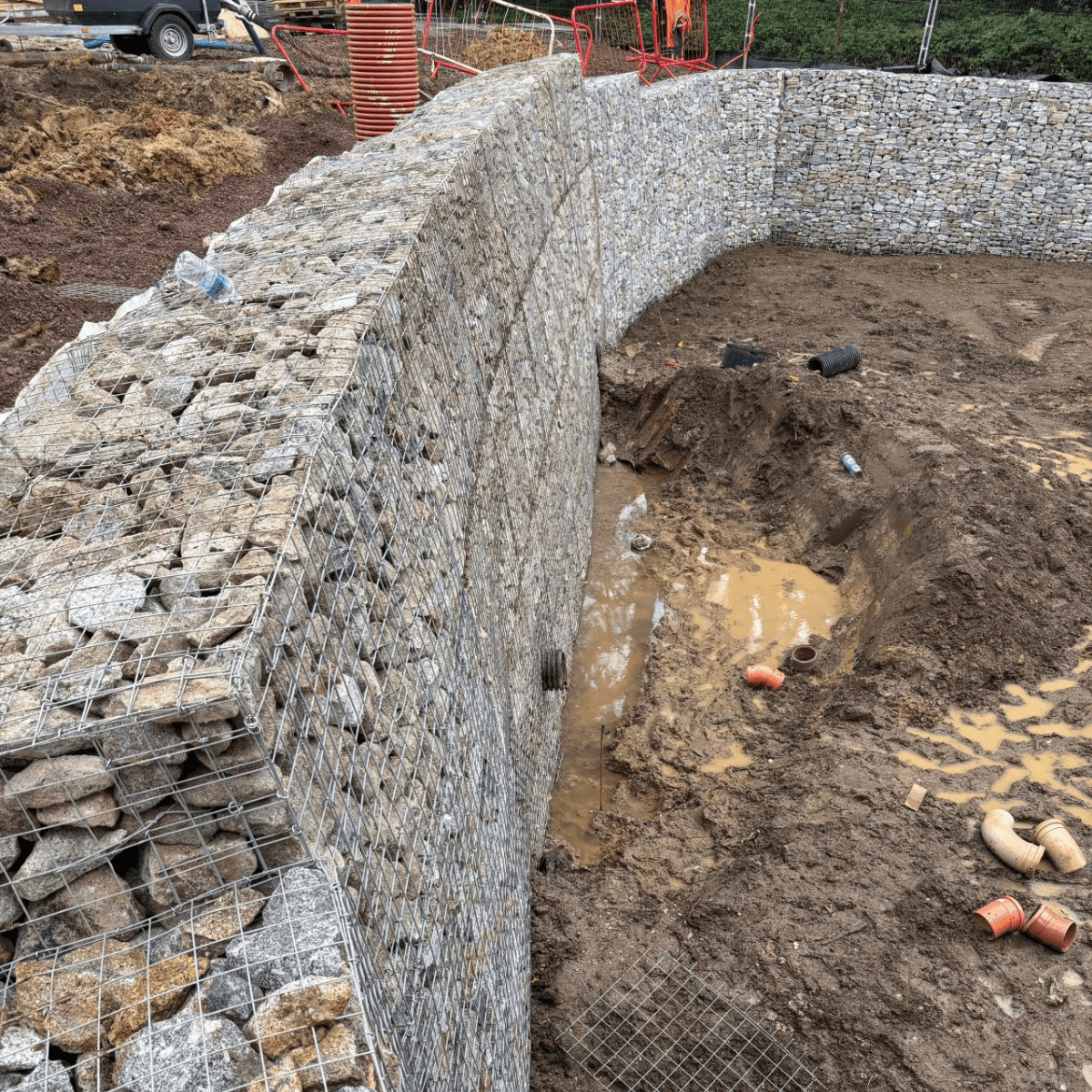

Attenuation basin retaining walls — Gabion terraces or single-tier walls retain the banks of basins designed to temporarily store storm water and release it at a controlled rate, protecting downstream watercourses and sewer networks from peak flows.
Infiltration basin edge structures — Where ground conditions allow water to soak away naturally, gabion structures retain the basin profile while still allowing water to interact with the surrounding soil, supporting groundwater recharge.
Sediment forebays — Positioned at the inlet to a basin, gabion-formed forebays trap sediment and debris before they reach the main feature, extending the design life of the SUDS scheme and reducing dredging and maintenance costs for the developer or managing agent.
Design Considerations Our Engineers Work Through
Every SUDS application is different, and getting the detail right at design stage avoids problems later. Our technical team works through considerations including:
- Water level fluctuation and saturation — designing for gabions that will be regularly wetted and dried, and specifying stone and mesh accordingly.
- Bank geometry and terracing — whether a single wall or a stepped, multi-tier terrace best suits the basin profile and the surrounding levels.
- Mesh type and corrosion protection — selecting double twist woven or welded mesh gabions with a coating specification suited to the site’s water chemistry and expected design life.
- Stone fill selection — sizing and grading fill material to balance structural performance, void ratio and, where relevant, local aesthetic requirements.

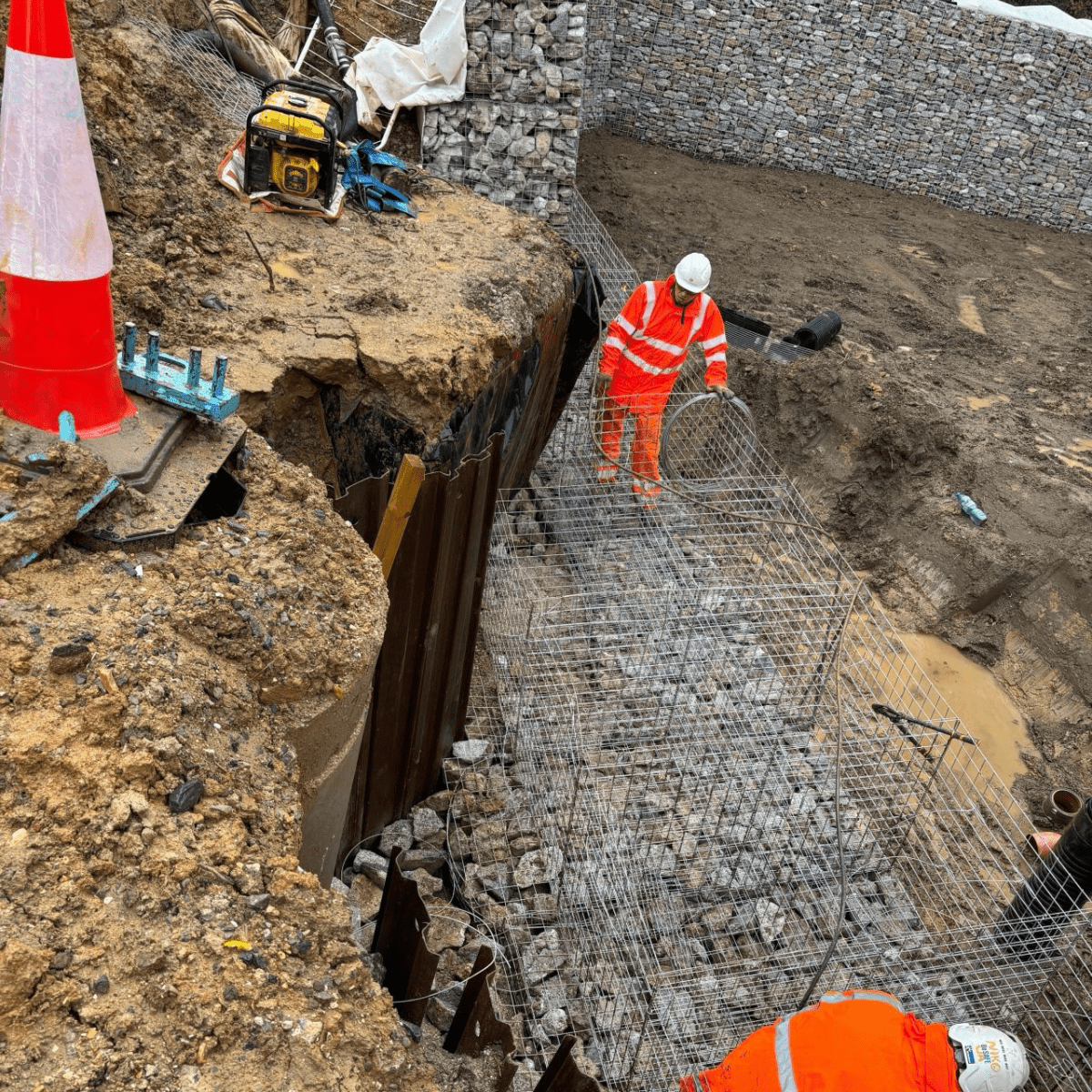

- Sequencing with the wider SUDS construction programme — basin excavation, liner or clay works and gabion wall construction often need to be carefully phased, particularly on terraced schemes where a lower wall sits beneath an upper structure still under construction.
Manufacturing and Installation, Managed as One Service
Because Enviromesh manufactures gabions as well as designing and installing them, developers and contractors get a single point of accountability across the whole scheme — from layout drawings and technical design, through to standard and bespoke manufactured gabions, mattresses and rock netting, and on-site installation. Where site access or programme constraints make conventional installation impractical, our Prefill and Lift service offers an alternative route to getting gabion structures into position without compromising the design.
This joined-up approach matters most on residential schemes, where SUDS ponds are frequently being built alongside plots, roads and other infrastructure, and the retaining structure needs to fit a live construction sequence rather than a standalone one.
The Benefits Beyond Compliance
Specifying gabions for SUDS ponds does more than satisfy a planning condition. Over time, vegetation establishes within the stone fill, softening the appearance of the basin edge and supporting biodiversity. The structure’s permeability keeps supporting the basin’s hydraulic function long after installation, rather than working against it. And because gabions can be shaped to follow the natural contours of a site, they tend to sit more comfortably within a residential landscape than a straight concrete edge.
